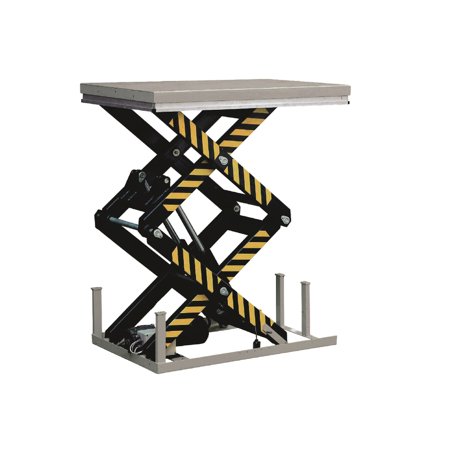

Lift table 1300x820mm 1000kg

Tables for high lifts and long goods. Table should be fixed into floor with bolted joints. Maintenance free pivot bushings. Large safety clearance between the scissors to avoid injuries. Lift cylinder with internal drainage. Safety valve to ensure safety in case of a hose burst. Low-noise power pack with built-in overload valve. Safety switch in top position. Moveable limit switch for adjusting full raised stop. 4 end-stops, incl. 4 loops which can be used e.g. when lifting total lift table into a pit. Low-noise power pack with built in overload valve. Cable for 3-phase connection 380V/16 Ah. Approves to EN1570-1.

Type Double scissor
Capacity (kg) 1000
Stroke length 1475 mm
Table area (LxW) 1300x820 mm
Base frame size (LxW) 1250x680 mm
Weight (kg) 210
Lifting time to max height 20-25 s
Lift motor (kW) 380V / 50HZ 1,5kW
Lifting height 305-1780 mm
