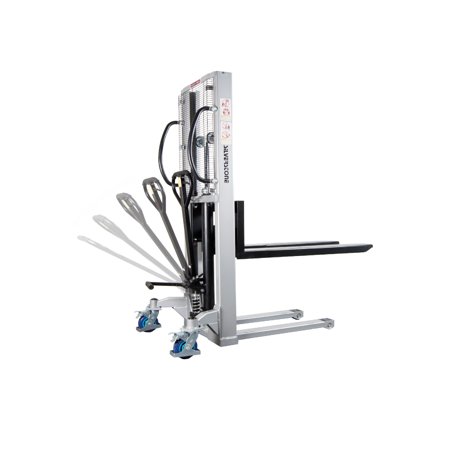

Manual stacker Quicklift 1100mm
Can be shipped in 8 days
Stackers has a welded and reinforced chassis for heavy loads, 1-stage or 2-stage lifting masts made of C-section profiles, dual chains and single lifting cylinder, fork carriage and wheels.Sealed hydraulic system with protected pump and built-in overload valve. This gives a long and trouble free lifetime. They all have a unique, very easy to pump quick lifting system which lifts 45 mm/stroke when in quick position. Stackers applies to EN1757.
Capacity 1000 kg
Lifting height 85-1100mm (free lift)
Quick lift
Foot/handpump
Load center 500 mm
Dimensions (LxWxH) 1605x860x1580 mm
Fork length (mm) 1150
Fork width, total/fork (mm) 550/160
Weight (kg) 215
Steering wheel Ø150x40
Fork wheel Ø80x70 (single)
Turning radius 1360 mm
Lifting speed (mm/stroke) 45-12,5
Height with mast in highest position 1580 mm
Lifting mast Simplex 1-stage
Capacity 1000 kg
Lifting height 85-1100mm (free lift)
Quick lift
Foot/handpump
Load center 500 mm
Dimensions (LxWxH) 1605x860x1580 mm
Fork length (mm) 1150
Fork width, total/fork (mm) 550/160
Weight (kg) 215
Steering wheel Ø150x40
Fork wheel Ø80x70 (single)
Turning radius 1360 mm
Lifting speed (mm/stroke) 45-12,5
Height with mast in highest position 1580 mm
Lifting mast Simplex 1-stage
Read more
Article number:
ES1011
Unit:
Pcs
Number per pack:
1
UNSPSC:
24101606
EAN:
0
Subgroup:
Stackers
Brand:
Silverstone
Color:
Grey
Capacity:
1000 kg
Fork length:
1150 mm
Size:
1605 x 860 x 1580 mm
Weight:
215 kg
