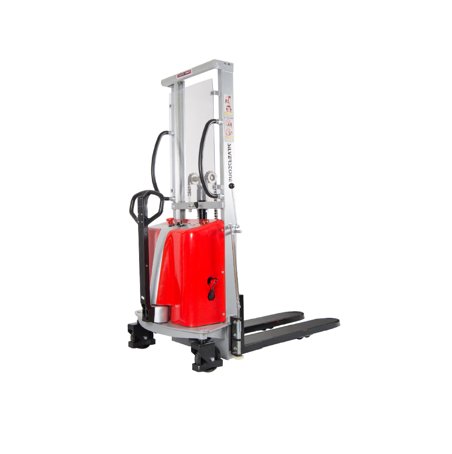

Semi-electric stacker 1600mm
Can be shipped in 8 days
Semi-electric stacker suited for intensive handling and continuous lifting. Compact design ensures a small turning radius. Fast lifting/lowering speeds.Easy and smooth steering makes the stacker safe and easy to operate. Service-friendly assembly of hydraulics, electrics and batteries. Large battery, 150Ah/12V, for many working hours per charging. The perfect choice for high productivity requirements in confined spaces.
Capacity 1000kg
Lifting height 85-1600mm
Built-in charger
Load center 600 mm
Outer dimensions 1660x800x2060 mm
Outer fork width 540 mm
Weight (kg) 350
Steering wheel Ø180x50
Fork wheel Ø74x70
Turning radius 1350 mm
Lowering speed, load/no load 190-400
Lift motor (kW) 1,6
Height with mast in highest position 2060 mm
Fork dimensions (LxWxH) 1150x160x50 mm
Battery (V/Ah) 2x12/60
Battery type Maintenance free
Lifting speed (mm/s) 130-80
Lifting mast Simplex 1-stage
Capacity 1000kg
Lifting height 85-1600mm
Built-in charger
Load center 600 mm
Outer dimensions 1660x800x2060 mm
Outer fork width 540 mm
Weight (kg) 350
Steering wheel Ø180x50
Fork wheel Ø74x70
Turning radius 1350 mm
Lowering speed, load/no load 190-400
Lift motor (kW) 1,6
Height with mast in highest position 2060 mm
Fork dimensions (LxWxH) 1150x160x50 mm
Battery (V/Ah) 2x12/60
Battery type Maintenance free
Lifting speed (mm/s) 130-80
Lifting mast Simplex 1-stage
Read more
Article number:
EMS-1016
Unit:
Pcs
Number per pack:
1
UNSPSC:
24101606
EAN:
0
Subgroup:
Stackers
Brand:
Silverstone
Color:
Red/grey
Capacity:
1000 kg
Fork length:
1150 mm
Size:
1660 x 800 x 2060 mm
Weight:
350 kg
